GENERAL WKLM is used to measure level of water tank, ballast tank,bilge water tank and draft gauging. The simpleness and precision of sensor designment and the installation outside of tank result in convenient maintenance.
1. PURGE TYPE LEVEL MONITORING SYSYTEM
WKLM-PUT PURGE TYPE LEVEL MONITORING SYSTEM
WKLM-PUT PURGE TYPE LEVEL MONITORING SYSTEM
Technical parameter: →Accuracy: 1.5% of max range →Blind zone: 100mm →Pressure of air source: 7bar →Working pressure: 3bar →Air consumption: 10L/h each point →Circumstance temperature: -25°C~+60℃
2. PRESSURE TYPE LEVEL MONITORING SYSYTEM
WKLM-PT PRESSURE SENSOR TYPE LEVEL MONITORING SYSTEM
WKLM-PT PRESSURE SENSOR TYPE LEVEL MONITORING SYSTEM
Technical index → Range: 0~6m， 0~30m → Accuracy: 0.5%FS → Blind section: 100mm → Power supply: AC220V 50Hz → Consumption: 5w / measure point → Circumstance temperature: -25°C~+80℃
3. FLOAT TYPE LEVEL MONITORING SYSYTEM

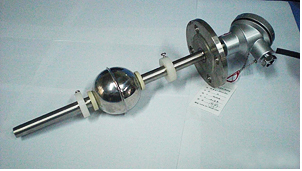

WKLM-LS TYPE HIGH LEVEL、HIGH HIGH LEVEL ALARM SYSTEM
WKLM-LS TYPE HIGH LEVEL、HIGH HIGH LEVEL ALARM SYSTEM
Character → The sensor can be designed for alarm point according to tank. → Advanced technology with self-checking and Loop failure monitoring. → Simulate the position of alarm level through the pull rod of level sensor. → Operating temperature: -10℃~+90℃. → Protection class: IP56. → Ex-proof: Exia Ⅱ CT6. → Meet the standard of shipbuilding.
4. RADAR TYPE LEVEL MONITORING SYSYTEM
WKLM-GM RADAR TYPE LEVEL MONITORING EQUIPMENT
WKLM-GM RADAR TYPE LEVEL MONITORING EQUIPMENT
Technical parameter → Range: 0~10m. 0~35m → Accuracy: ≤0.1% of max range → Power: DC24V → Output signal: 4~20mA → Protection class: IP67 → Ex-proof class: Exia Ⅱ CT6
